| 产品名称：6x6底盘 |
|
| 型号：KPCQ-2 |
| 材质：铸钢 |
| 重量：1800kg |
| 浏览次数： |
|
 产品详细介绍 |
|

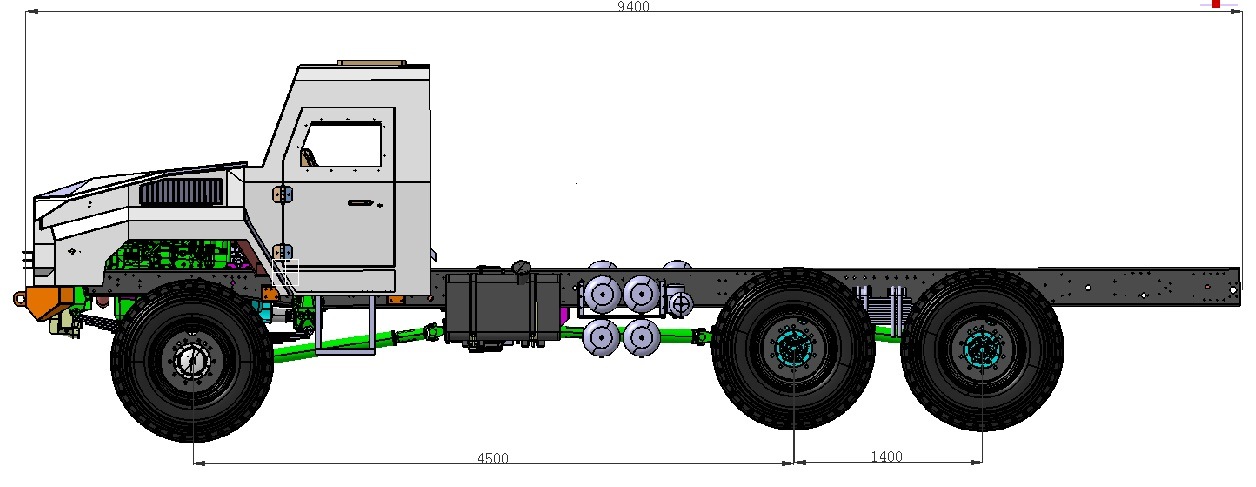

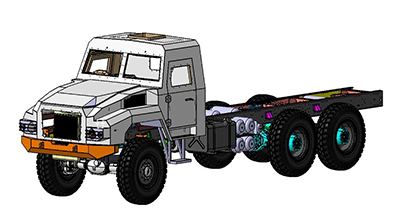

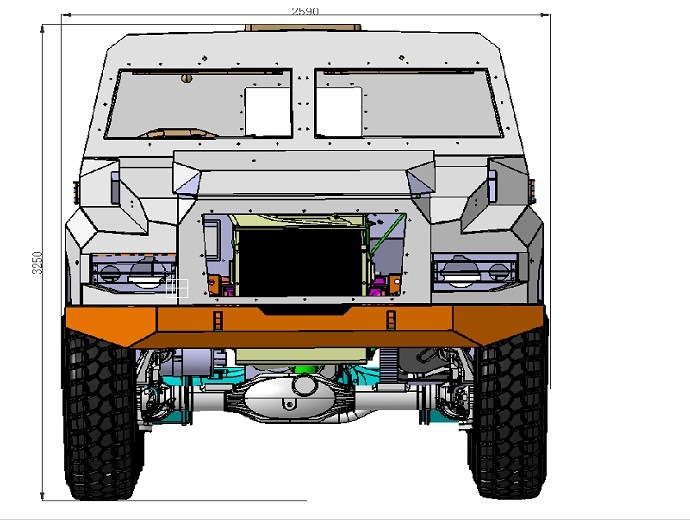

6x6 chassis basic parameters |
|
size |
size |
9400×2590×32500 |
| container size |
6200×2500×800 |
| wheel base |
4500+1400 |
| front rear overhang |
1350/2150 |
| wheel track |
2116/1876/1876 (front/middle/rear) |
| approach angle/ departure angle |
35/24 (º) |
| passengers |
3 |
| property |
curb weight |
11300 kg |
| chassis permit max gross mass |
29000 kg |
| max permit axle load |
9000 front, 10000+10000 rear |
| (Kw/r/min) rated power |
191/2200 |
| (N·m/r,min) max torque |
1025/1200 |
| displacement |
8.3 L |
| max speed |
90 km/h |
| min steady speed |
2.5 km/h |
| max grade ability |
60 % |
| hill hold ability |
40 % |
| min ground clearance |
385 |
| min turning circle |
≤8 m |
| max vertical height |
≤600 |
| max cross ditch width |
≤600 |
| max fording depth |
≤1000 |
| fuel consumption |
<22 L |
| fuel tank capacity |
280 L |
| max driving range |
800 km |
| drive model |
6×6 |
| environment adaptation |
working condition:-41ºC~+55ºC;
Store temp:-55ºC~+70ºC; Altitude:5000m;
RH:90%(30ºC) |
|
Basic state |
|
|
Name |
State |
| 1 |
engine |
Commins c260Hp,straight six cylinder, intercooled diesel engine,191kw |
| |
optional |
Deutz CA6DE3-24E3F,straight six cylinder, intercooled diesel engine 177kw |
| 2 |
transmission |
Manual nine gears |
| 3 |
transfer case |
High/low shift |
| 4 |
front axle |
9,.9t,wheel side reducer |
| 5 |
rear axle |
10t+10t,wheel side reducer |
| 6 |
suspension |
Front :spring plate, two shock absorber
Rear: spring plate, stabilizer bar |
| 7 |
frame |
861mm,280×75×8 pressing and riveted frame structure |
| 8 |
tire |
1,14.00R20,Six off road tires, one spare tire
2,Middle and rear axle single tire, with support inside
3,With CTIS |
| 9 |
electric |
24V electrical system
Two batteries:12/180Ah,. |
| 10 |
chassis others |
Clutch booster, power steering, exhaust brake,hook,fire extinguisher
|
| 11 |
cab |
1,8mm Armor plate and 39mm security glass
2,Air conditioner
3,FM,.radio
4,Instrument board |
| 12 |
special equipment |
1,carry 20 container
2,wiht ladder
3,ceiling height 178cm.
4,24 seat |
| 13 |
special protection |
8mm Fuel tank armor plate | |
| |
|
|
